Natural/ synthetic juice line

Choose your line

Parameters Table

Model KRFC-40-HOT FILL KRFC-60-HOT FILL KRFC-90-HOT FILL KRFC-120-HOT FILL KRFC-160-HOT FILL KRFC-200-HOT FILL
No. of Heads 8-8-4 12-12-6 18-18-6 20-20-8 24-24-8 30-30-10
Capacity (bottles per minute) 30 BPM 60 BPM 90 BPM 120 BPM 160 BPM 200 BPM
Power consumption of whole line (approx.) 40 KW 60 KW 75 KW 80 KW 90 KW 100 KW
Space required (square feet) 2000 to 2500 Sq/ Ft 2500 to 3000 Sq/ Ft 5500 to 6000 Sq/ Ft 6000 to 7000 Sq/ Ft 8000 to 10000 Sq/ Ft 15000 to 20000 Sq/ Ft

Exclusive Service

01

Pet blow molding machine

Automatic PET Bottle Blowing / Making Machine is suitable for blowing PET bottles of various shapes, volume from 200 ml to 2000 ml, wide application for blowing mineral water bottles, carbonated soft drink bottles, PET juice bottles, PP bottles.

02

Water Treatment System

It can effectively get rid of muddy organic, iron, manganese and oxide, filter suspended substance, colloid, remained oxygen of micro-organism and some of height-metal ion in the water. This water treatment equipment can also reduce hardness of water to make all specifications of the water quality fully meet the state fresh water standards, even that of standard of mineral water.

03

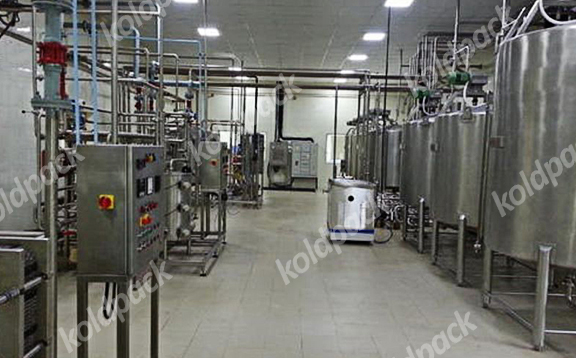

Juice processing & mixing section

It’s a complete system used to produce Natural/Synthetic. It contains sugar melting tank, syrup filter, cooling cum holding tank, Juice mixing tank, water chiller, Clean place system for syrup preparation as well as, pulp collection & transfer system, homogenizer, Pasteurizer and so on. Depending on your different formulations, we can customize machines for you. Mainly used for RTS juice, synthetic juice, natural pulp juice etc. Best welding, polishing working with high-quality stainless steel 304/316. Scientific process design. Automatic control.

04

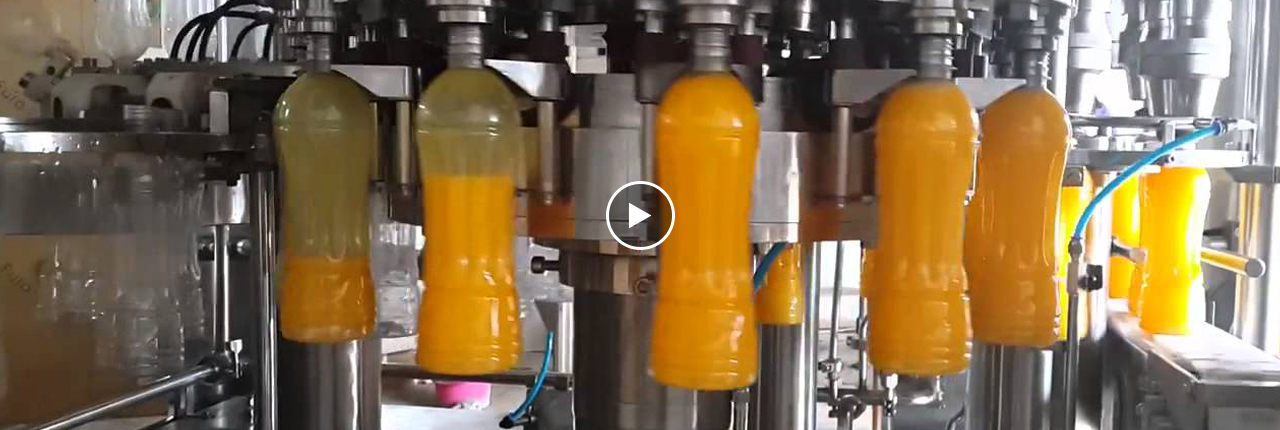

3 in 1 HOT-FILL juice filling machine

This three-in-one machine for PET bottles integrates the functions of rinsing, HOT filling and capping together with HOT filling. Based on advanced technology overseas and designed according to the filling processing demands of juice line. It’s used for 200-2000ml plastic bottles.

This machine integrated three functions:

  • Rinse the empty pet bottle
  • Filling the rinsed bottles
  • capping the filled bottles

The main electric and air-drive components are world famous brand products. All control is advanced touch-screen operation and realizes people-computer dialogue operation.

05

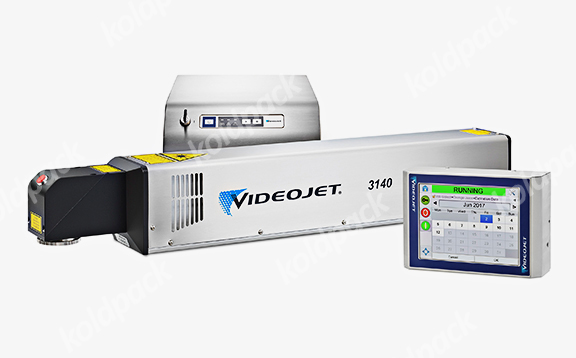

Ink jet printing machine

Ink jet printing machines are used to print Batch Coding, Batch Number, Manufacturing Date, Expiry Date, MRP and other such details which give detailed information about the product.

LaserJet & inkjet printers with two or three line printing are available to choose.

06

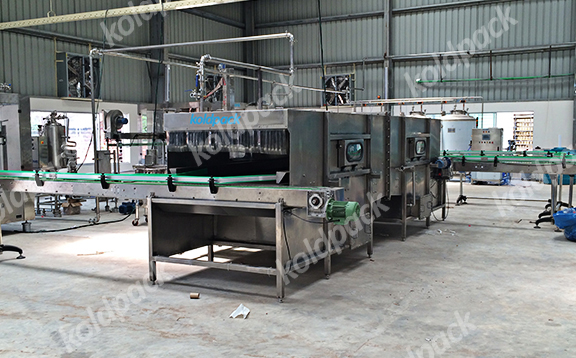

Cooling tunnel

The Cooling tunnel is completely made from the SS material attached with the out feed conveyer by using a buffer conveyor used for getting hot bottles from 70-80 degrees to the room temperature of 28-30 Degrees. It is used for hot fill bottles like juice. Decrease the temperature of bottle up to 30°C by using cool water spraying for cooling gradually in four zones.

07

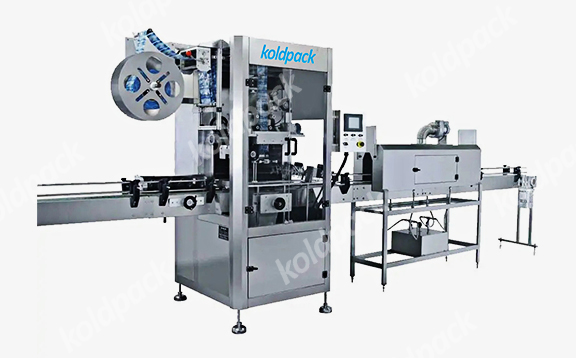

Labelling machine

We offer several different types of bottle labeling machines based on your requirement. Machines can be used for PVC sleeve labels, self-adhesive sticker labels, OPP/BOPP labels.

08

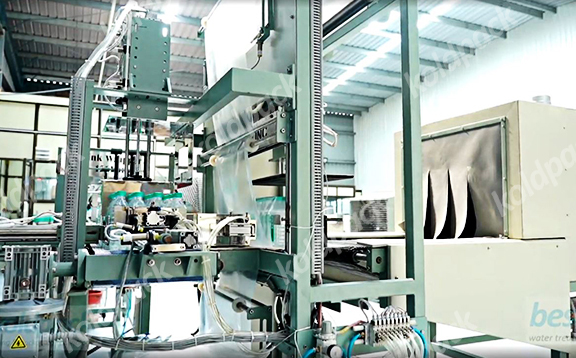

Shrink wrapping machine

At the end to complete the line we have shrink wrapping machine & box/case packing machine for you to choose.

Shrink wrapping machine is used to pack the bottles in suitable matrix to convey & transport finish product easily.
