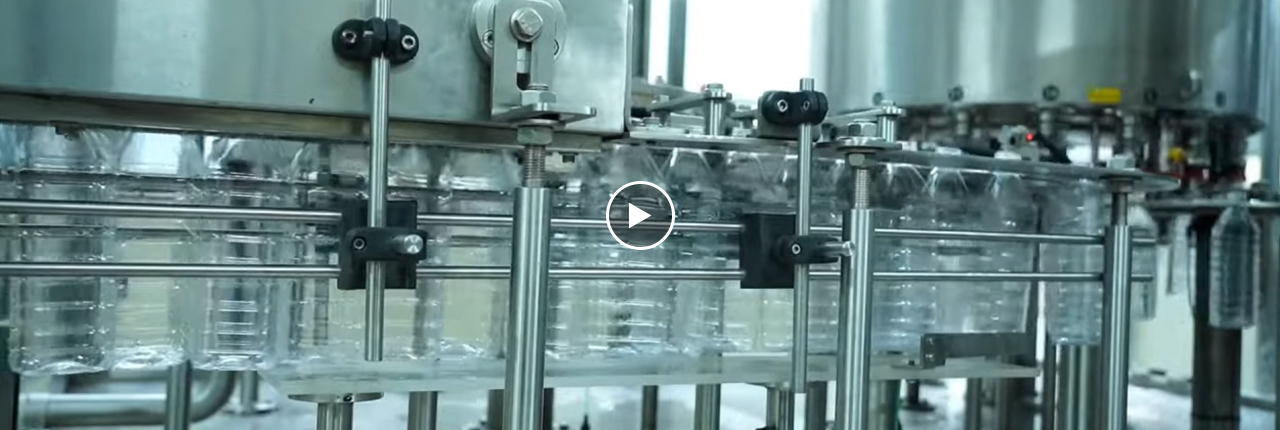

Water line 200ML to 2 L

Choose your line

Parameters Table

Model KRFC-30 KRFC-40 KRFC-60 KRFC-90 KRFC-120 KRFC-160 KRFC-200
No. of Heads 10-5-1 8-8-4 12-16-6 18-18-6 20-20-8 24-24-8 30-30-10
Capacity (bottles per minute) 30 BPM 40 BPM 60 BPM 90 BPM 120 BPM 160 BPM 200 BPM
Power consumption of whole line (approx) 20 KW 25 KW 35 KW 50 KW 55 KW 55 KW 80 KW
Space required (square feet) 1500 to 2000 Sq/ Ft 1500 to 2000 Sq/ Ft 2000 to 2500 Sq/ Ft 4000 to 5000 Sq/ Ft 4000 to 5000 Sq/ Ft 8000 to 10000 Sq/ Ft 15000 to 20000 Sq/ Ft

Exclusive Service

01

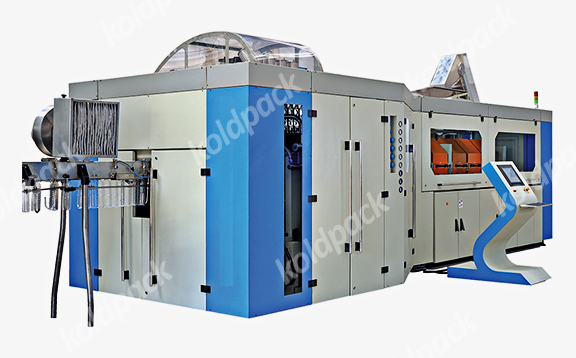

Pet blow molding machine

Automatic PET Bottle Blowing / Making Machine is suitable for blowing PET bottles of various shapes, volume from 200 ml to 2000 ml, wide application for blowing mineral water bottles, carbonated soft drink bottles, PET juice bottles, PP bottles.

02

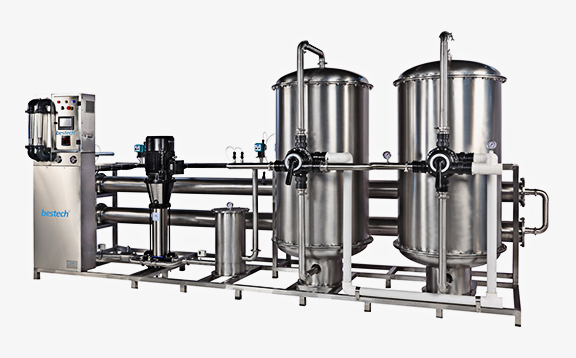

Water Treatment System

It can effectively get rid of muddy organic, iron, manganese and oxide, filter suspended substance, colloid, remained oxygen of micro-organism and some of height-metal ion in the water. This water treatment equipment can also reduce hardness of water to make it all specifications of the water quality fully meet the state fresh water standards, even that of standard of mineral water.

03

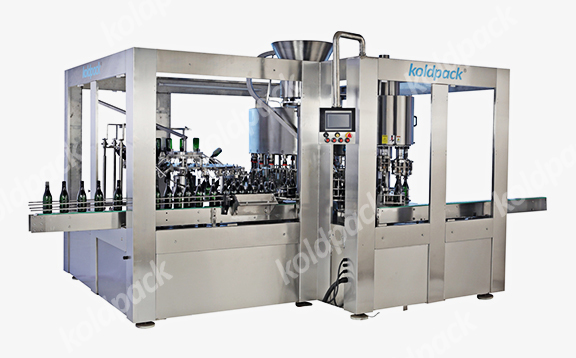

Rinsing filling & capping machine

This 3-in-1 machine for PET bottle integrates the functions of rinsing, filling and capping together. Based on advanced technology overseas and designed according to the filling processing demands of mineral water, pure water etc.

This machine integrated three functions:

  • Rinse the empty pet bottle
  • Filling the rinsed bottles
  • Capping the filled bottles

The main electric and air-drive components are world famous brand products. All control is advanced touch-screen operation and realizes people-computer dialogue operation.

04

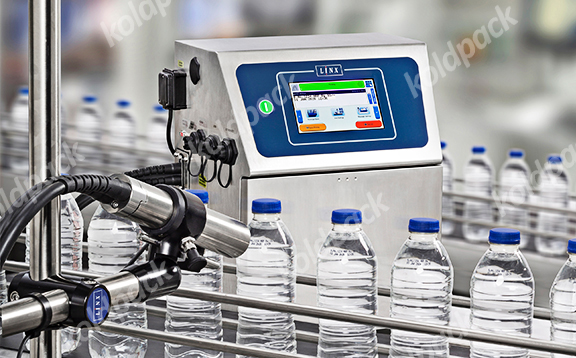

Ink jet printing machine

Ink jet printing machines are used to print Batch Coding, Batch Number, Manufacturing Date, Expiry Date, MRP and other such details which give detailed information about the product.

Laserjet & inkjet printers with two or three line printing are available to choose.

05

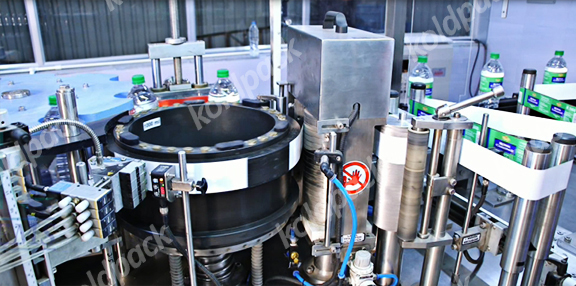

Labelling machine

We offer several different types of bottle labeling machines based on your requirement. Machines can be used for PVC sleeve labels, self-adhesive sticker labels, OPP/BOPP labels.

06

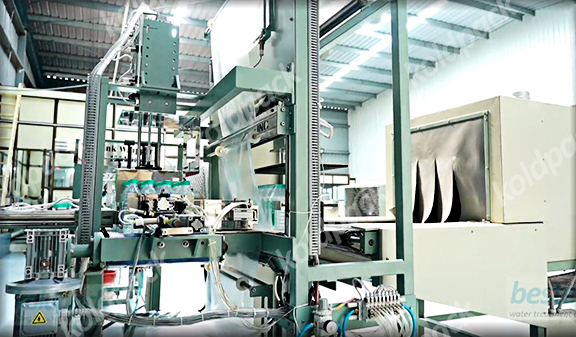

Shrink wrapping machine

At the end to complete the line we have shrink wrapping machine & box/case packing machine for you to choose.

Shrink wrapping machine is used to pack the bottles in suitable matrix to convey & transport finish product easily.

Success Case
