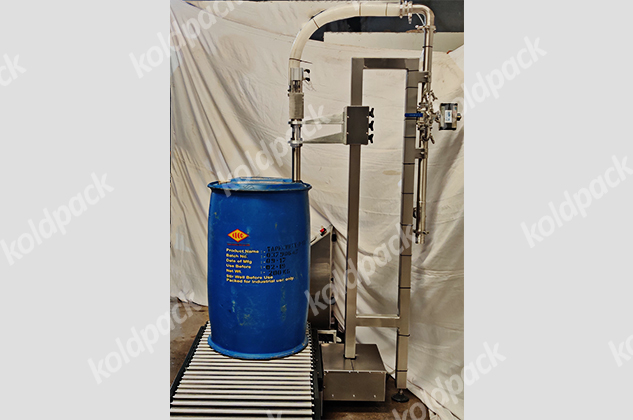

Barrel/ Drum filling machine

Koldpack Barrel machine is best suited for liquids filled in barrels & drums bulk quantities e.g.100 Kg, 200 Kg, etc. Oftentimes there are products that must be sold by weight for commercial reasons and therefore this filling machine is the only choice. Examples of this type of filler for bulk products include all types of chemicals, lubricants, food products etc. High value products filled by these machines include specialty adhesives and paints, precious metals dissolved in acids, and other expensive specialty chemicals.

×
  • Compact design in S.S. elegantly matt finished body.
  • No change parts require filling different fill sizes.
  • Course & fine filling variable option for avoiding spillage of liquid & maintaining linear flow.
  • Better accuracy of 0.5 to 1 %
  • Can handle hazardous, toxic & corrosive liquids.
  • Easily detachable pipeline for cleaning / CIP purposes.

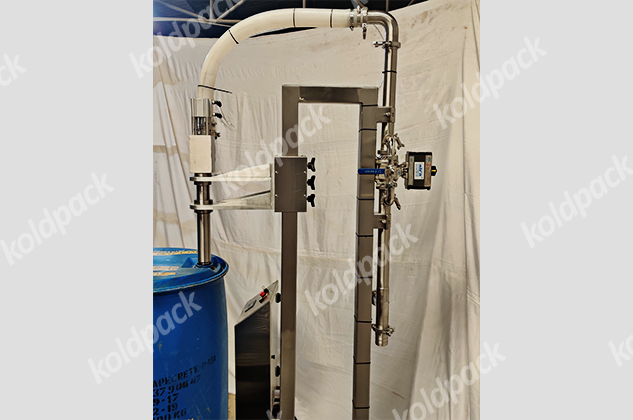

  • Can be customized for deep diving bottom start filling and gradually raised nozzle for foamy liquids.
  • Equipped with pre & post nitrogen purging & semi-automatic capper.
  • Electronically controlled nozzles, with ‘No Container No Fill’ arrangement.

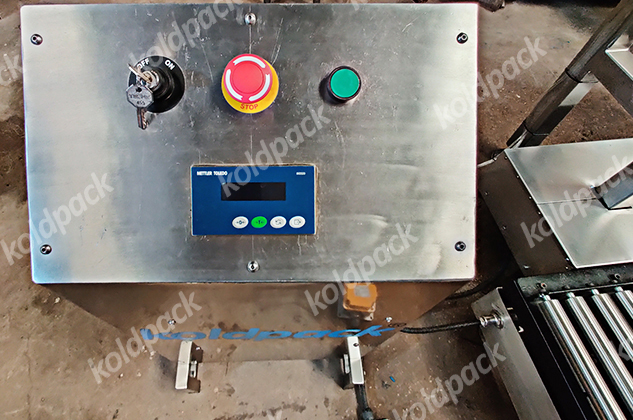

  • Built in inflight correction, auto tare & total weight of product.
  • Drip free nozzle arrangement with drip pot for deep diving nozzle.

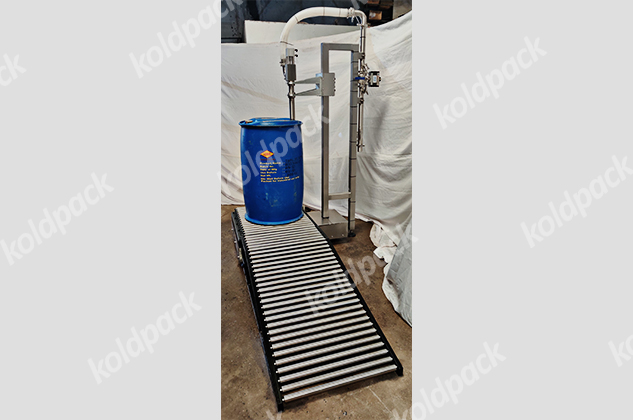

  • Within in feed & out feed SS rollers for easy handling of barrels.
  • With automatic bypass system or VFD system to reduce over pressure in pipe line.
  • Flame proof enclosure suitable for flammable liquids.
No. Of Filling Head 1 to 2
Output drum Per Hour 25 to 30 drums/Hour (For 210 Kg)*
45 to 50 drums/Hour (For 50 Kg)*
Type Of Filling Weight Metric Type or Flow meter type
(Based on product)
Material Of construction Contact parts : SS 316, others Parts : SS 304, Structure : MS powder coated
Electrical Supply AC 230 V Single Phase
Compressed Air Consumption @4 to 6 Bar 1 CFM
Application
filling of foaming and non-foaming liquids in drums or Barrels- chemicals, solvents, pesticides, petroleum product, oils, resins etc.

The operation of this type of filling machine is simple. After sensing the barrel as an object to fill, machine automatically tares its weight to zero. Then the product bulk supply is pumped into the container by opening two pneumatic valves. The first valve closes after achieving the course weight and the second after the target weight is achieved.
