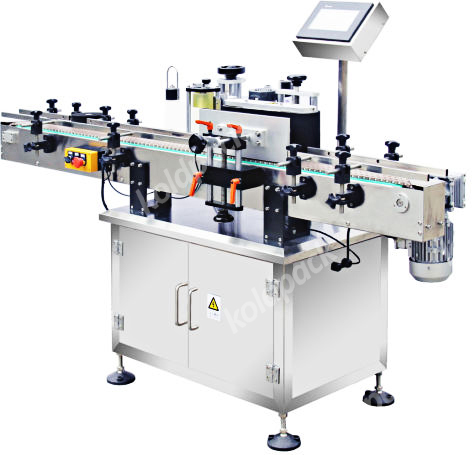

Sticker labelling machine

Koldpack provides wide variety & custom made sticker labelling machines like Vertical Sticker Labeling, wrap around sticker labelling, double side sticker labelling, sticker labelling for large containers which cover all shapes & sizes of bottle without any change part. The sticker labelling machine can be used for one side labeling on flat surfaces of flat containers or full/partial wrap around labeling on different sizes of round/square containers. The automatic model is equipped with belt spacing device resulting in a simple to “No change parts required”.

×

Extra Attachments

  • Online printing device.
  • Online Batch No, Barcode printing.
  • Acrylic Cabinet with safety locks.
  • Camera Inspection of barcode & auto rejection of bottle.
  • Single side, double side & wrap around type labelling options.
  • Servo/stepper based high speed label applicator.
  • PLC based control with touch screen HMI.
  • Quick installation, no change parts & easy to operate.
  • Available with round bottle attachments for partially & fully wrap around labelling.
  • One touch speed synchronization.
  • Stainless steel 304 construction.
  • GMP compliance design.
  • Accurate label placement with one notch orientation.
  • Product data & production data storage facility.
  • Can operate with any shape & wide range of capacity bottles & containers.
  • Compatible with filling, capping & online shrink wrapping machine.
  • Suitable for Glass, Plastic, Pet, Tin, Corrugated containers.
Applicator Single side & double side with round bottle attachment
Speed 100/ 200/ 300 BPM
Label Dimension Length: 10 mm to 180 mm
Height : 30mm to 150 mm
Applicator Type Stepper/Servo Based
Control By PLC with HMI

The containers are positioned & curate spacing between two containers by the belt spacing device and a belt drive mechanism holds the container from top of the container for one side labeling on flat container or wrap-around operation on round container at the labeling point, an electronics product sensor sense container & release a label from self-adhesive label roll. If machine is equipped with batch printing device in that case batch printing device prints the batch no. & another matter on label during label is stationary means time between sensing of two labels. The sensed container moves on conveyor sticker label at labeling point wrapped around to container. Then the labeled container moves further through a pressing device to ensure neat neat & perfect fixing of label.
