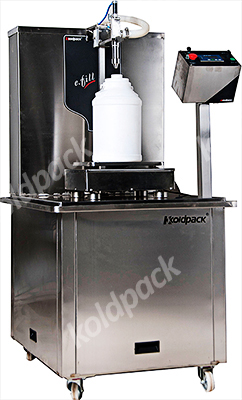

Net weight filling machine

Weight filler is best suited for viscous liquids of higher density and filled in bulk quantities e.g. 5kg jerry cans, 5 gallon pails, 20 Kg drums, 50 Kg drums etc. Examples of this type of filler for bulk products include cleaning chemicals, enzyme solutions, oils, ghee and other medium value products. High value products filled by these machines include specialty adhesives and paints, precious metals dissolved in acids, and other expensive specialty chemicals.

01 Salient Features

Compact design in S.S. elegantly matt finished body.
Pump based/ Gravity based filling with bypass line to reduce over pressure during standby of machine.
Programmable controller with unlimited recipes set as per requirement.
No change parts are required to fill different fill sizes.
Better accuracy of filling 0.1 to 0.5 %
Course & fine filling variable option for avoiding spillage of liquid & maintaining linear flow.
Easily detachable pipeline for cleaning / CIP purpose.
Electronically controlled nozzles, with ‘No Container No Fill’ arrangement.
Facility of diving nozzle for foamy liquid.
Auto tare facility before filling start.
Auto correct facility in weight for liquid to be in air.
Drip free nozzle arrangement.
Can be equipped with pneumatic capper for performing manual capping operation.
Castor wheels for easy mobility.

02 Technical Specifications

Model	Koldpack E-fill-1H-W-20	Koldpack E-fill-1H-W-20	Koldpack E-fill-1H-W-50
No of Head	1- Head	2- Head	1- Head
Filling Range	1 Liter to 5 Liter 5 Liter to 20 Liter	1 Liter to 5 Liter 5 Liter to 20 Liter	5 Liter to 50 Liter
Output @ Bottles per hour	180 to 200 (for 5 liter) 120 to 140 (for 20 liter)	320 to 350 (for 5 liter) 220 to 240 (for 20 liter)	180 to 200 (for 5 liter) 120 to 140 (for 20 liter) 30 to 40 (for 50 liter)
Compressed Air Consumption @ 4 to 6 Bar	0.5 CFM	1 CFM	0.5 CFM
MOC	Contact parts : SS 316, others Parts : SS 304, Structure : MS powder coated
Application	Specialty chemicals, oil, veterinary product, pesticide, dairy product, viscous liquid product etc.

03 Operation

After sensing the Can/Jar as an object to fill, machine automatically tares its weight to zero. Then the product bulk supply is pumped into the container by opening two pneumatic valves. The first valve close after achieving the course weight and the second after the target weight is achieved. Accuracy of fills is accomplished by various "bulk and dribble" (course and fine) methods in the filling process so that overfills are avoided The entire filling range of 1 litre – 5 litres or 5 litres – to – 20 litres can be set on the machine without any change part.
