Warming tunnels

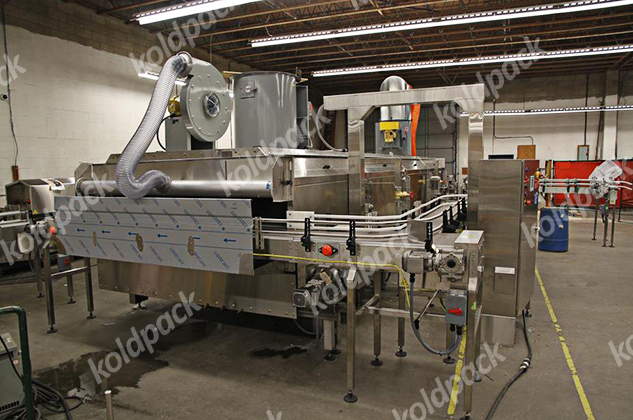

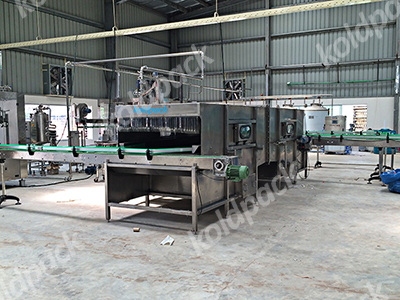

The Warming tunnel is completely made from the SS material attached with the outfeed conveyer by using buffer conveyor used for getting cold bottles from 3/5 degrees to the room temperature of 28-30 Degrees. It is used for cold filled bottles like Carbonated Soft drinks. Increase the temperature of bottle up to 30°C by using hot water spraying for warming gradually in four zones.

×
  • Heating time & temperature are adjustable and main motor is controlled by frequency inverter drive.
  • Completely made from SS 304& enclosed by elegant SS matte finish Body.
  • PLC controlled with HMI touch screen panel.

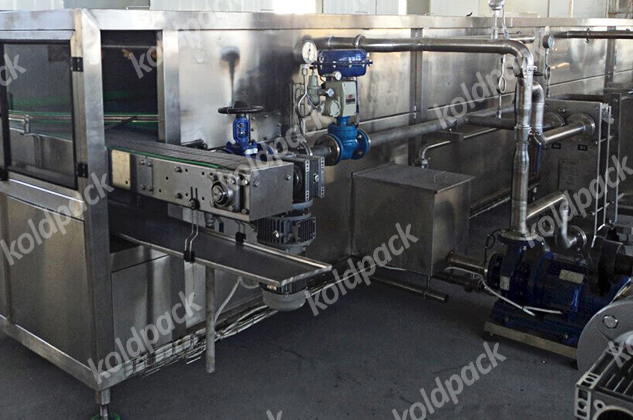

  • Grundfos/CRI make pumps for higher reliability.
  • Each zone has temperature control sensors with individual controls & working at preset values which can change from the HMI screen.
  • Can compatible with pressure less combiner (buffer conveyer) for smooth operation.

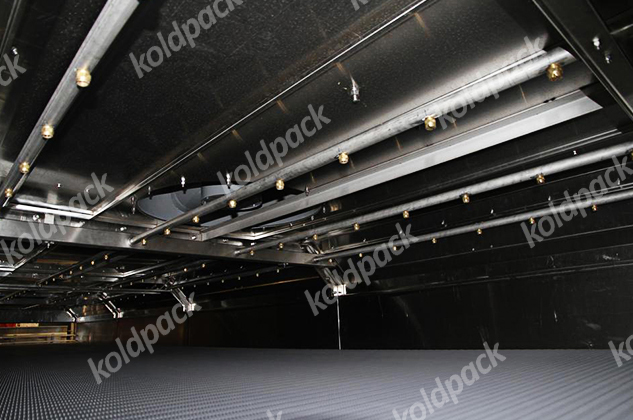

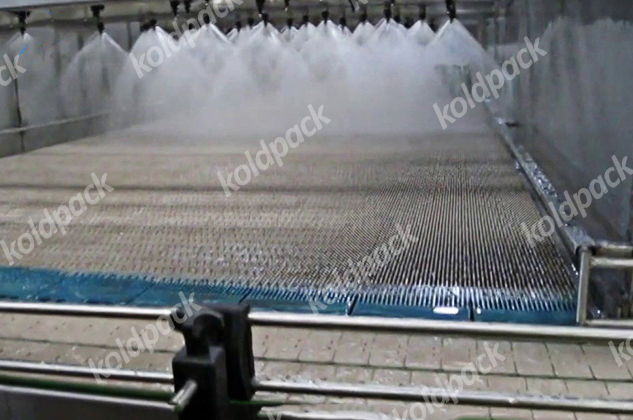

  • Stainless steel nozzles with hollow cone spays provide high coverage area for maximum machine efficiency.
  • All the parts including the buffer tank, nozzles, Hose pipe, & pump are connected by tri-clamp for easy disassembling during the cleaning process.
  • Special strainer & filter are provided at the suction side of pump.
Capacity Output 3000 to 12000 Bottles per hour
Effective warming area 0~1.2m/min
Circular water volume 56 m3/ h
Overall dimension 7000 × 1340 × 1650 mm (L × W × H)
Weight: (Approx) 2200 Kg
Temperature 4/6°C inlet temp. to 35/40°C room temp. outlet*
MOC SS 304 structure with SS matte finish body
Power supply 15HP 3- Phase 440 V AC
