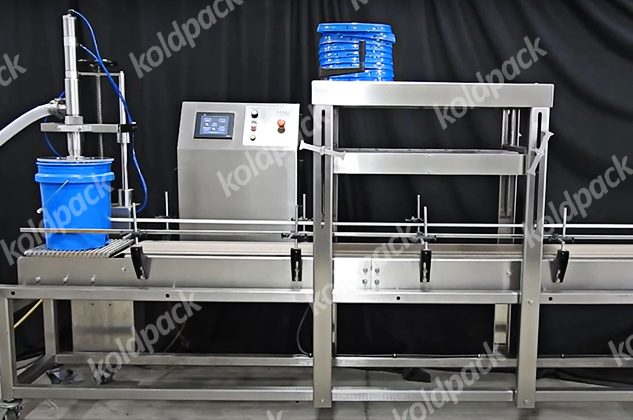

Pail/ bucket filling machine

Koldpack Bucket & pail filling machine is best suited for liquids filled in Pail & Buckets bulk quantities e.g.10 Kg, 20 Kg. etc. Oftentimes there are products that must be sold by weight for commercial reasons and therefore this filling machine is the only choice. Examples of this type of filler for bulk products include all types of chemicals, lubricants, industrial solvent, paints, food products etc. High value products filled by these machines include specialty adhesives and paints, precious metals dissolved in acids, and other expensive specialty chemicals.

×
  • Compact design & fully customized machine.
  • Available with roller closure/ pneumatic plate closure type lid pressing system.
  • PLC based control with large HMI touch screen panel.
  • Can handle a wide variety of filling ranges & container sizes.
  • External filling tank with agitator for mixing.
  • Calibrated filling with auto tare start.
  • Outside openable nozzle with double seat to ensure maximum flow rate & accurate filling.
  • Can be compatible with flammable, hazardous, toxic chemicals which need to fill at high temperatures.
  • Unlimited filling recipe generation & storage as per requirement.
  • Specialized high temperature food grade silicone seals with tri-clamp based connection for each cleaning.
  • All the parts including the main valve, buffer tank, nozzles, Hose pipe, & pump are connected by tri-clamp for easy disassembling during the cleaning process.
  • Semi-Automatic Cap lidding, Crimping & closing system is added to the system.
No. Of Filling Head 1 to 2
Output Per Hour 170 to 180 pails/ Hr.(for 15/20 liter)
Type Of Filling Weight Metric Type or Flow meter type
(Based on product)
Material Of construction Contact parts : SS 316, others Parts : SS 304, Structure : MS powder coated
Electrical Supply AC 230 V Single Phase
Compressed Air Consumption @4 to 6 Bar 1 CFM
Application Paints, chemicals, adhesive product, Urea Ad-blue, solvent, highly viscous product, etc.

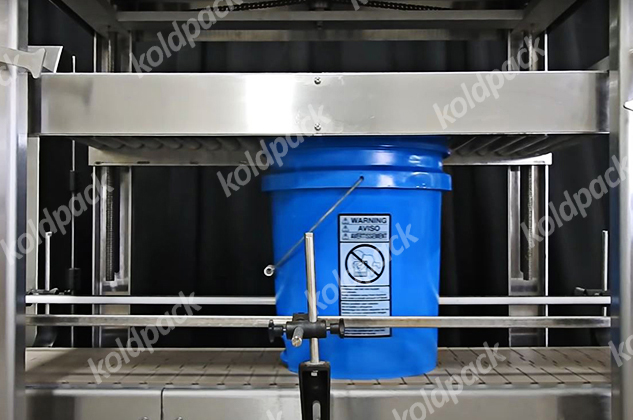

The operation of this type of filling machine is simple. The buckets are manually put on the filling platform after sensing the pail or bucket as an object to fill, machine automatically tares its weight to zero. Then the product bulk supply is pumped into the container by opening two pneumatic valves. The first valve closes after achieving the course weight and the second after the target weight is achieved. After completing filling operation bucket or pail is passed through the roller conveyor or pneumatic lid pressing system for perfect sealing.
