Bottle capping machine

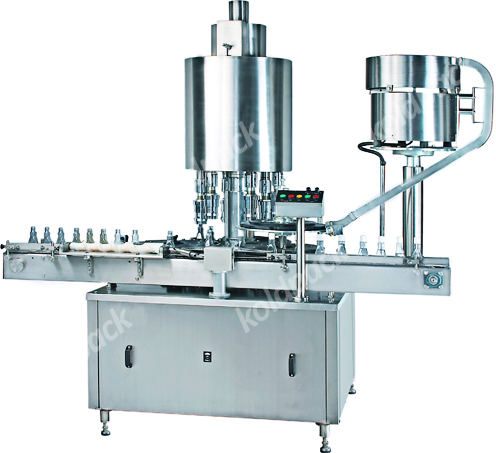

Automatic Screw Capping Machine is versatile, self-supported on stainless steel leg with automatic/ semi-automatic height adjustable as per bottle height. The machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are providing to facilitate the servicing of machine.

×
  • No container no cap arrangement.
  • Control system based on PLC with touchscreen HMI panel.
  • Adjustable height of conveyor belt to align with other machine
  • All contact parts are made out of stainless steel 304.
  • Complete enclosure by using imported matte finish SS plates & acrylic doors.
  • Magnetic Torque adjustable capping head.
  • Low noise level, low power consumptions.
  • Self-lubricating UHMW- PE guide profile for low friction wears surface, smooth and noiseless conveying.
  • Fast and easy changeover with one touch synchronization.
  • Machine capable to handle HDPE,plastic, PET containers.
No. Of Capping Head 1 to 6 heads
Output bottles Per Hour 250 to 1800 bottles per hour
Capping technology Mechanical torque adjustable, Servo based.
Cap delivery system Automatic by cap elevator/ Cap orienteer
Material Of construction Contact parts : SS 304, Body Parts : SS 304Matt finish
Electrical Supply AC 440V Three Phase
Compressed Air pressure 4 to 6 Kg/ Cm2
Conveyer width (mm) 60 – 300
Customization Can be combined with automatic air jet cleaning, filling, inner plugging, capping & sealing

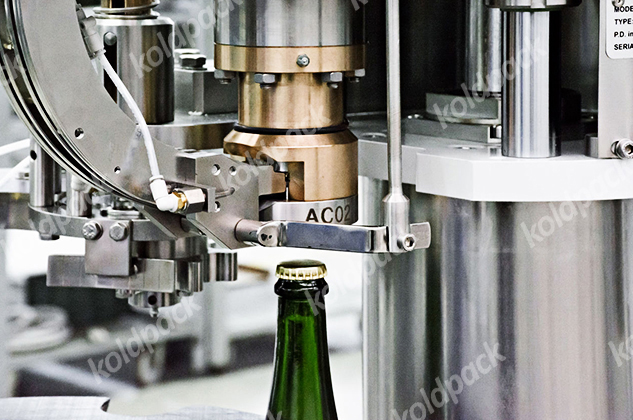

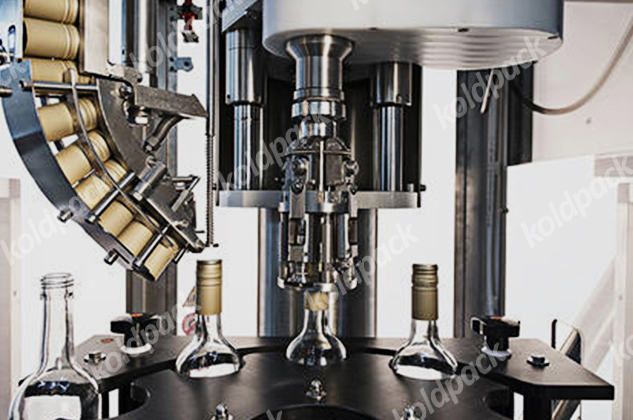

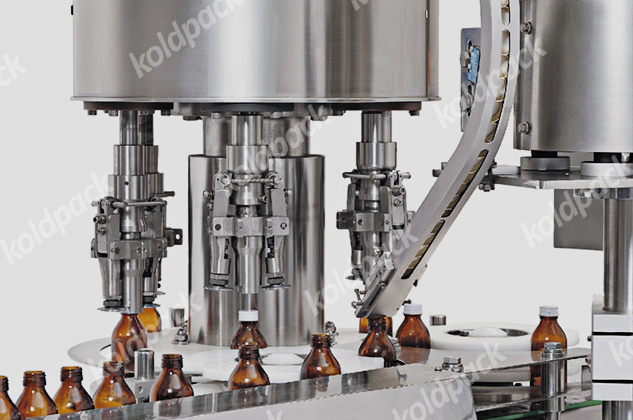

The feed container moving on conveyor belt are feed into star wheel, bringing the container below the Screwing head in the subsequent indexing part, meanwhile the cap which is receiving cap from delivery chute of cap feeding bowl, where the body and the neck of the container are positioned below the motorized rotating head which is governed by cam for up-down, where the Screwing head is performing perfect operation of Screwing, Rotating head is designed to seal container perfectly.
