Quadrafill- on pallet barrel/ drum/ container filling machine

×

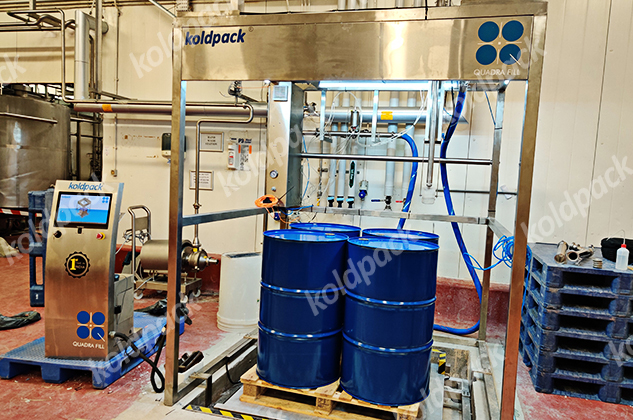

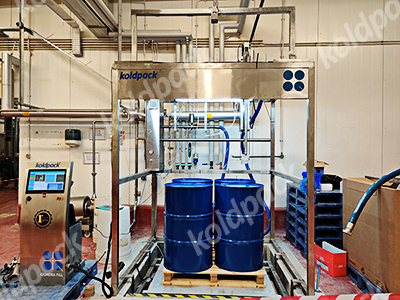

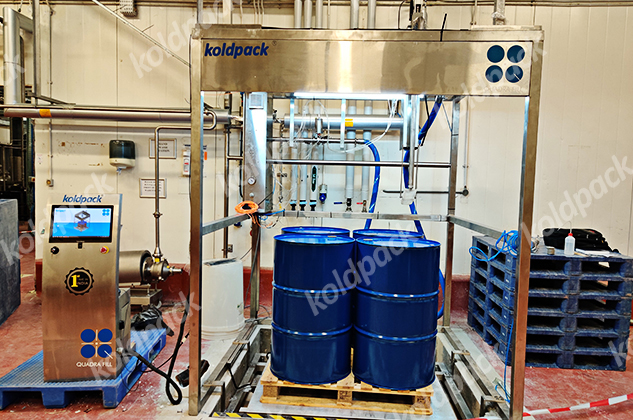

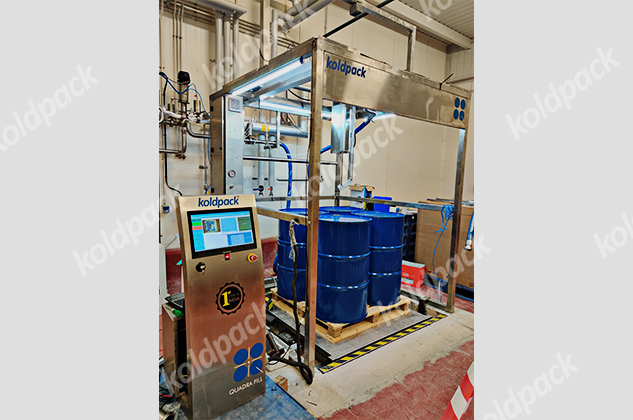

QUADRA FILL is Fully Automatic container, Drums, Barrels & IBCs Filling system on pallet, which is composed of co-ordination of Multi Axis and Auto positioning of filling lance and bunghole using high MP industrial AF camera with integrated SCADA for operations.

×

Customization Option

  • Un-bunging, filling, bunging, Capping & Sealing.
  • Type X Purge System for Inertisation/Purging of gas.
  • Foamy and Non-Foamy Product Applications.
  • Different MOC based on area of applications.
  • Fully automatic with conveyor belts for pallets.
  • Controlling product flow to the filling machine.
  • Anti-explosion version for Hazardous areas.
  • Weighted, mass or flow filling options.
  • Customized Filling Nozzles.
  • High Speed with Double Filling Lance.
  • Integration with previous & next machines.
  • CIP cleaning system compatible.
  • IOT Integration Support.

Can be configured for more flexible & automatic workstation

  • Bung hole detection
  • De capping
  • Pre N2 purging
  • Filling
  • Post N2 purging
  • Capping
  • Sealing
  • Automatic in & out of pallets
  • Servo based conveyor rollers system with intermediate bucket stations.
  • Available with automatic roller closure/ pneumatic plate closure type lid pressing system.
  • PLC based control with large HMI touch screen panel.
  • Can handle a wide variety of filling ranges & container sizes.
  • Inbuilt filling tank with agitator for mixing.
  • Calibrated filling with auto tare start.
  • Outside openable nozzle with double seat to ensure maximum flow rate & accurate filling.
  • Course & fine filling facility for foamy product.
  • Acrylic doors with safety locks provided.
  • Can be compatible with flammable, hazardous, toxic chemicals which need to fill at high temperatures.
  • Unlimited filling recipe generation & storage as per requirement.
  • Specialized high temperature food grade silicone seals with tri-clamp based connection for each cleaning.
  • All the parts including the main valve, buffer tank, nozzles, Hose pipe, & pump are connected by tri-clamp for easy disassembling during the cleaning process.
  • Automatic Cap lidding, Crimping & closing system is added in fully automatic pails filling process.
  • Can be compatible with online ink jet printer & palletizer.
No. Of Filling Head 2 to 6 heads
Output Per Hour 200 to 600 buckets/ Hr.
Filling Type Weight based electronic load cell type
Nozzle System Top filling- Bottom Filling
Material Of construction Contact parts : SS 316, Body Parts : SS 304Matt finish
Electrical Supply AC 440V Three Phase
Compressed Air pressure 4 to 6 Kg/ Cm2
Filling Range 1 Liter to 5Liter with necessary change parts
Application Filling of foamy and non-foamy liquids in bottles & containers.

Automation is done keeping in mind speed and accuracy of filling Drums, Barrels & IBCs giving high yields. Industrial Grade Camera scans all Drums, Barrels & IBC's bungs at one go to automatically align filling lance and the bunghole giving speed and accuracy without human intervention. Single point operation with centralized SCADA software having large 15” Touch Screen.
