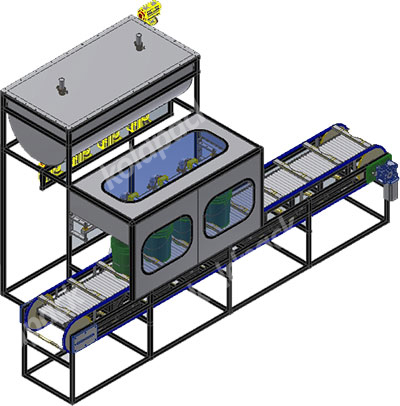

Net weight linear automatic filling machine

Koldpack automatic new weight filling machine is working on the principle of load call based weight filling suitable to fill liquid products in 10L buckets, 20L buckets & pails. The machine consists of inbuilt buffer tank with liquid level controller on ground level or up level for gravity based filling. Servo based chain conveyer system adjust the buckets in perfect position before starting the filling. This machine comes with an automatic lid pressing device to make it more flexible. Examples of this type of filler for bulk products include all types of chemicals, lubricants, industrial solvent, paints, food products etc. High value products filled by these machines include specialty adhesives and paints, precious metals dissolved in acids, and other expensive specialty chemicals.

×
  • Servo based conveyor rollers system with intermediate bucket stations.
  • Available with automatic roller closure/ pneumatic plate closure type lid pressing system.
  • PLC based control with large HMI touch screen panel.
  • Can handle a wide variety of filling ranges & container sizes.
  • Inbuilt filling tank with agitator for mixing.
  • Calibrated filling with auto tare start.
  • Outside openable nozzle with double seat to ensure maximum flow rate & accurate filling.
  • Course & fine filling facility for foamy product.
  • Acrylic doors with safety locks provided.
  • Can be compatible with flammable, hazardous, toxic chemicals which need to fill at high temperatures.
  • Unlimited filling recipe generation & storage as per requirement.
  • Specialized high temperature food grade silicone seals with tri-clamp based connection for each cleaning.
  • All the parts including the main valve, buffer tank, nozzles, Hose pipe, & pump are connected by tri-clamp for easy disassembling during the cleaning process.
  • Automatic Cap lidding, Crimping & closing system is added in fully automatic pails filling process.
  • Can be compatible with online ink jet printer & palletizer.
No. Of Filling Head 2 to 6 heads
Output Per Hour 200 to 600 buckets/Hr.
Filling Type Weight based electronic load cell type
Nozzle System Top filling- Bottom Filling
Material Of construction Contact parts : SS 316, Body Parts : SS 304Matt finish
Electrical Supply AC 440V Three Phase
Compressed Air pressure 4 to 6 Kg/ Cm2
Filling Range 1 Liter to 5 Liter with necessary change parts
Application Filling of foamy and non-foamy liquids in bottles & containers.

Koldpack automatic new weight filling machine is working on the principle of load call based weight filling suitable to fill liquid products in 10L buckets, 20L buckets & pails. The machine consists of inbuilt buffer tank with liquid level controller on ground level or up level for gravity based filling. Servo based chain conveyer system adjust the buckets in perfect position before starting the filling. This machine comes with automatic lid pressing device to make it more flexible. Examples of this type of filler for bulk products include all types of chemicals, lubricants, industrial solvent, paints, food products etc. High value products filled by these machines include specialty adhesives and paints, precious metals dissolved in acids, and other expensive specialty chemicals.
